Product Overview

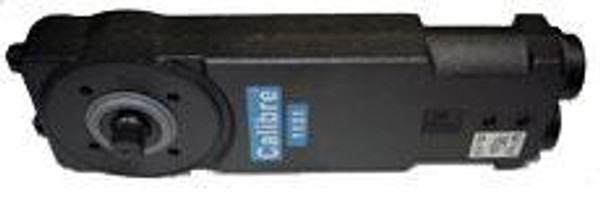

CA1130 COMPLETE PACKAGE
105 DEGREE BACK STOP - HOLD-OPEN - MEDIUM SPRING TENSION
Offset Hung Doors: Complete units for offset pivoted or butt hung aluminum doors and frames are furnished with a ‘JO’ or ‘VO’ type offset arm and CA3010-FS anchor set with all fasteners. (Offset pivots or butt hinges not included. Note: Top Door Stop / Arm Cover by others).
- Underwriters' Laboratories Inc. Listed for units without hold open feature. UL10C for positive pressure and certified to conform to UBC 7.2 (1997) BS476 for Fire Safety.
- Universal application. Non-handed for left or right door
application. - Installs in an aluminum storefront header or transom as
small as 1-3/4" x 4" - Positive cam centering for alignment and to hold door
closed against normal wind or draft conditions. - Stable hydraulic door check fluid for any climatic operation
and provides constant lubrication. - Dual Speed Control Valves: Closing and Latching speeds controlled by separate
regulating valves, fully adjustable after installation. - Standard Fixed spring tensions available: Medium
For optional ADA, Light, and Heavy spring tensions see CA2200 Series and CA6900 Series door closers.
Additional Documents:
OHC Door Closer Function Chart
Offset Arm Differences (3010-JO / 3020-VO)
Notice of Conformity / Maintenance
